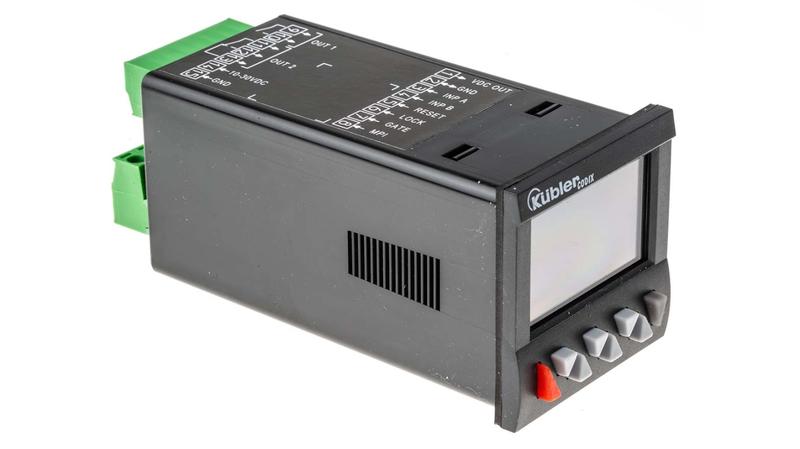

6.924.0103.300 Kübler CODIX 924 Counter, 6 Digit, 65kHz, 10 → 30 V dc

Kubler Digital Counter_x000D_ The Kubler CODIX 924 series digital counter is a 6-digit LCD display, multifunction 2,4 or 6 preset counter as a tachometer and timer all-in-one device. It has voltage rating ranges between 10VDC and 30VDC. This product can be used as a preset counter, batch counter or totalizer with up to 6 presets. It can solve a wide variety of control and monitoring tasks in every application._x000D_ This counter has a maximum count frequency of 65KHz._x000D_ Kubler Panel Mounting 48mm x 48mm - Electronic Counters_x000D_ Range of Resettable Counters / Timers / Rate Meters. All have 45mm x 45mm panel cut out and are sealed to IP65 (front fascia). Data retention greater than 10 years_x000D_ Features and Benefits_x000D_ Direct input of presets via the front keys_x000D_ Bi-directional counting_x000D_ Relay output_x000D_ 3 predefined settings for the most common parameter settings_x000D_ Tracking presets eliminate the need for reprogramming of the pre-signal_x000D_ 4 stage RESET modes and 3 stages of key lockout_x000D_ Step or tracking presets (eliminates the need for reprogramming of the pre-signal)_x000D_ Plug-in screw terminals_x000D_ Operating temperature ranges between -20°C and 65°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly lines_x000D_ Certifications_x000D_ IP65 rated
